AMBPEX5_v20_SX50T_CORE
Generics | Ports | Libraries | Packages
ambpex5_v20_sx50t_core Entity Reference

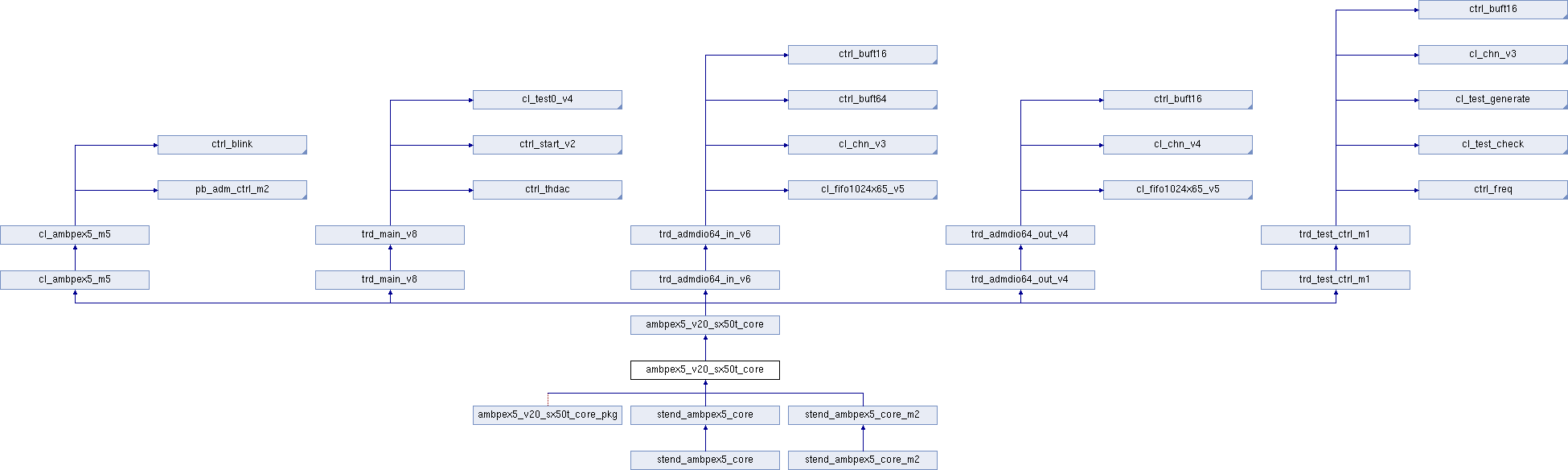

Граф наследования:ambpex5_v20_sx50t_core:
ambpex5_v20_sx50t_core cl_ambpex5_m5 trd_main_v8 trd_admdio64_in_v6 trd_admdio64_out_v4 trd_test_ctrl_m1 cl_ambpex5_m5 trd_main_v8 trd_admdio64_in_v6 trd_admdio64_out_v4 trd_test_ctrl_m1 ctrl_freq cl_test_check cl_test_generate cl_chn_v3 ctrl_buft16 cl_fifo1024x65_v5 cl_chn_v4 ctrl_buft16 cl_fifo1024x65_v5 cl_chn_v3 ctrl_buft64 ctrl_buft16 ctrl_thdac ctrl_start_v2 cl_test0_v4 pb_adm_ctrl_m2 ctrl_blink ambpex5_v20_sx50t_core_pkg stend_ambpex5_core stend_ambpex5_core_m2 stend_ambpex5_core stend_ambpex5_core_m2

Полный список членов класса



Architectures

ambpex5_v20_sx50t_core  Architecture

Libraries

ieee
unisim

Packages

std_logic_1164
std_logic_arith
std_logic_unsigned
vcomponents
adm2_pkg  Package <adm2_pkg>
cl_ambpex5_m5_pkg  Package <cl_ambpex5_m5_pkg>
trd_main_v8_pkg  Package <trd_main_v8_pkg>
trd_pio_std_v4_pkg  Package <trd_pio_std_v4_pkg>
trd_admdio64_out_v4_pkg  Package <trd_admdio64_out_v4_pkg>
trd_admdio64_in_v6_pkg  Package <trd_admdio64_in_v6_pkg>
trd_test_ctrl_m1_pkg  Package <trd_test_ctrl_m1_pkg>

Generics

is_simulation  integer := 0

Ports

txp   out std_logic_vector ( 7 downto 0 )
txn   out std_logic_vector ( 7 downto 0 )
rxp   in std_logic_vector ( 7 downto 0 ) := ( others = > ' 0 ' )
rxn   in std_logic_vector ( 7 downto 0 ) := ( others = > ' 0 ' )
mgt251_p   in std_logic := ' 0 '
mgt251_n   in std_logic := ' 0 '
bperst   in std_logic := ' 0 '
btp   out std_logic_vector ( 3 downto 1 )
bled1   out std_logic
bled2   out std_logic
bled3   out std_logic
bled4   out std_logic

Подробное описание

См. определение в файле ambpex5_v20_sx50t_core.vhd строка 70
